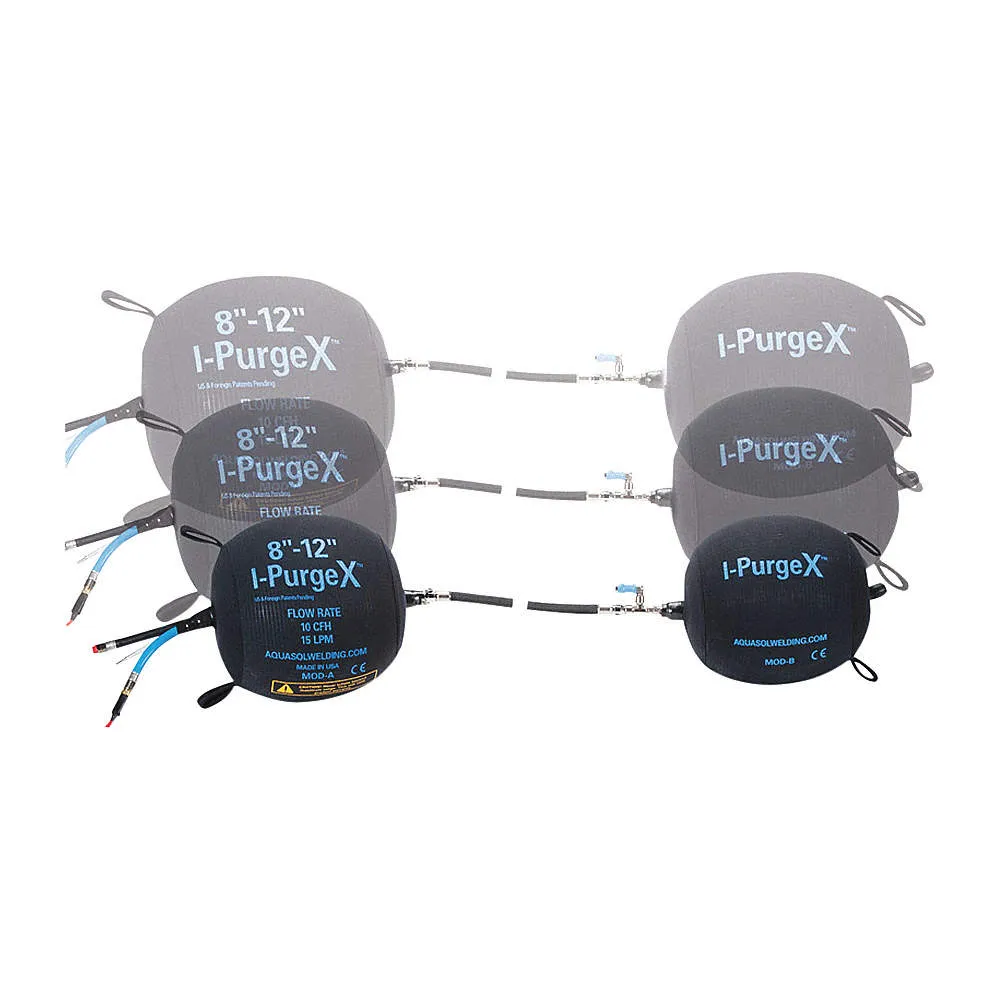

Aquasol I-Purge X Inflatable Purge Bladder System
Complete Expandable and Extendable Purge Bladder System
The I-Purge X bladders have the ability to expand and contract to fit a range of different pipe diameters, and are protected by a spark resistant exterior cover that does not combust when exposed to flames and sparks.
These state-of-the-art features allow the operator to create multiple configurations, including a one-sided pipe stopper and reducer. Bladders are available in sizes ranging from 2″- 3″ (51 mm – 76 mm) to 38″- 48″ (965 mm – 1219 mm) and may be purchased either individually or as a complete system, a distinct advantage should additional sizes be desired or a component need replacing.
Coupled with an extended length, high heat resistant harness; the I-Purge X is the most versatile pipe purging solution available and is ideal for fabrication shops and any environment with pipe accessibility. Manufactured in the USA from the highest quality materials, the I-Purge X is a reusable, long-term solution that is expandable, extendable, and simply extraordinary.
How I-Purge X Works
| 1. Module A | 5. Quick Connection to Module A | 9. Inflation & Purge (BLUE) Hose |
| 2. Module B | 6. Relief Valve | 10. Luminescent Indicator |
| 3. Quick Connection to Module B | 7. Direct Purge (BLACK) Hose | 11. Pull Loops |
| 4. Fiberglass High Heat Bridge Harness | 8. Exhaust Monitor Connection | 12. Gas Diffuser |
What's Included
- Every system includes 2 expandable bladders and a heat resistant harness
| ITEM NO | MINIMUM DIAMETER | MAXIMUM DIAMETER | STANDARD HARNESS LENGTH | |||
|---|---|---|---|---|---|---|
| XABLD 2-3 | 2″ | 51 mm | 3″ | 76 mm | 11″ | 279 mm |
| XABLD 4-6 | 4″ | 102 mm | 6″ | 152 mm | 11″ | 279 mm |
| XABLD 8-12 | 8″ | 203 mm | 12″ | 305 mm | 11″ | 279 mm |
| XABLD 14-18 | 14″ | 356 mm | 18″ | 457 mm | 16″ | 406 mm |
| XABLD 20-26 | 20″ | 509 mm | 26″ | 660 mm | 18″ | 457 mm |
| XABLD 28-36 | 28″ | 711 mm | 36″ | 914 mm | 20″ | 509 mm |
| XABLD 38-48 | 38″ | 965 mm | 48″ | 1219 mm | 36″ | 914 mm |
Non Stock Item - Some kits may require a 3 week lead time
